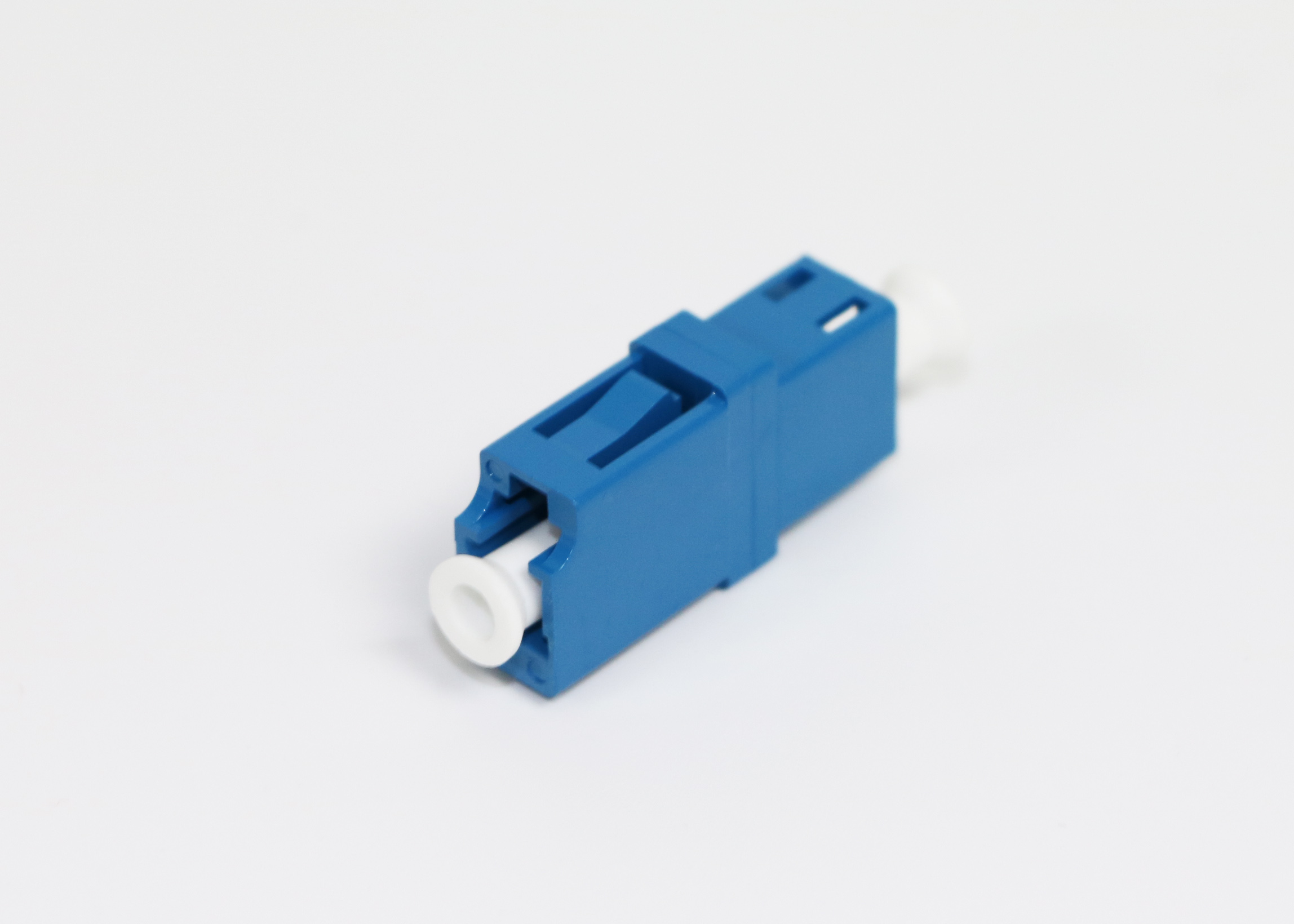

Simplex LC SingleMode fiber optic adapter panel loaded with adapter
Information:
Details
 Ceramic or Bronze Sleeve APC Fiber Optic Adapter with Shutter



Optic fiber receiver (also known as the flange, coupling) is a fiber optic connector for connection components, the product variety, including FC, SC, ST, LC, MTRJ, MPO etc. , as well as carry out the transfer of goods between each other.



Application:



Optical fiber transmission network

Cable network

Fiber LAN Network

Fiber optic patch panels, rack and wall mount fiber distribution



Feature:



Excellent Repeatability

Excellent Interchangeability

Superior performance, stable and reliable.

Flexible and easy to use

Repeatability, interchangeability

Working temperature: -40 ℃ -80℃



Specification:



Size

LC, SC, FC, SC-SC
FC-FC, LC-LC,

MTRJ

E2000

type

Single mode

Double mode

Single mode

Double mode

Single mode

PC

UPC

APC

PC

PC

UPC

PC

PC

APC

Insertion Loss (dB)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return Loss (dB)

≥45

≥50

≥60

≥30

≥45

≥50

≥35

≥55

≥75

Interchangeability (dB)

≤0.2

≤0.2

≤0.2

Repeatability (dB)

≤0.2

≤0.2

≤0.2

Mechanical durability

>1000

>1000

>1000

Working temperature( ℃)

-40~75

-40~75

-40~75

Storage Temperature

-45~85

-45~85

-45~85




Order Information:

LC/PC-ST/PC-SM-Duplex-Plastic
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, E2000, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal
