4U Slidable Fiber Optic Patch Panel for MTP / MPO Fiber Cassette Module
Information:
Details

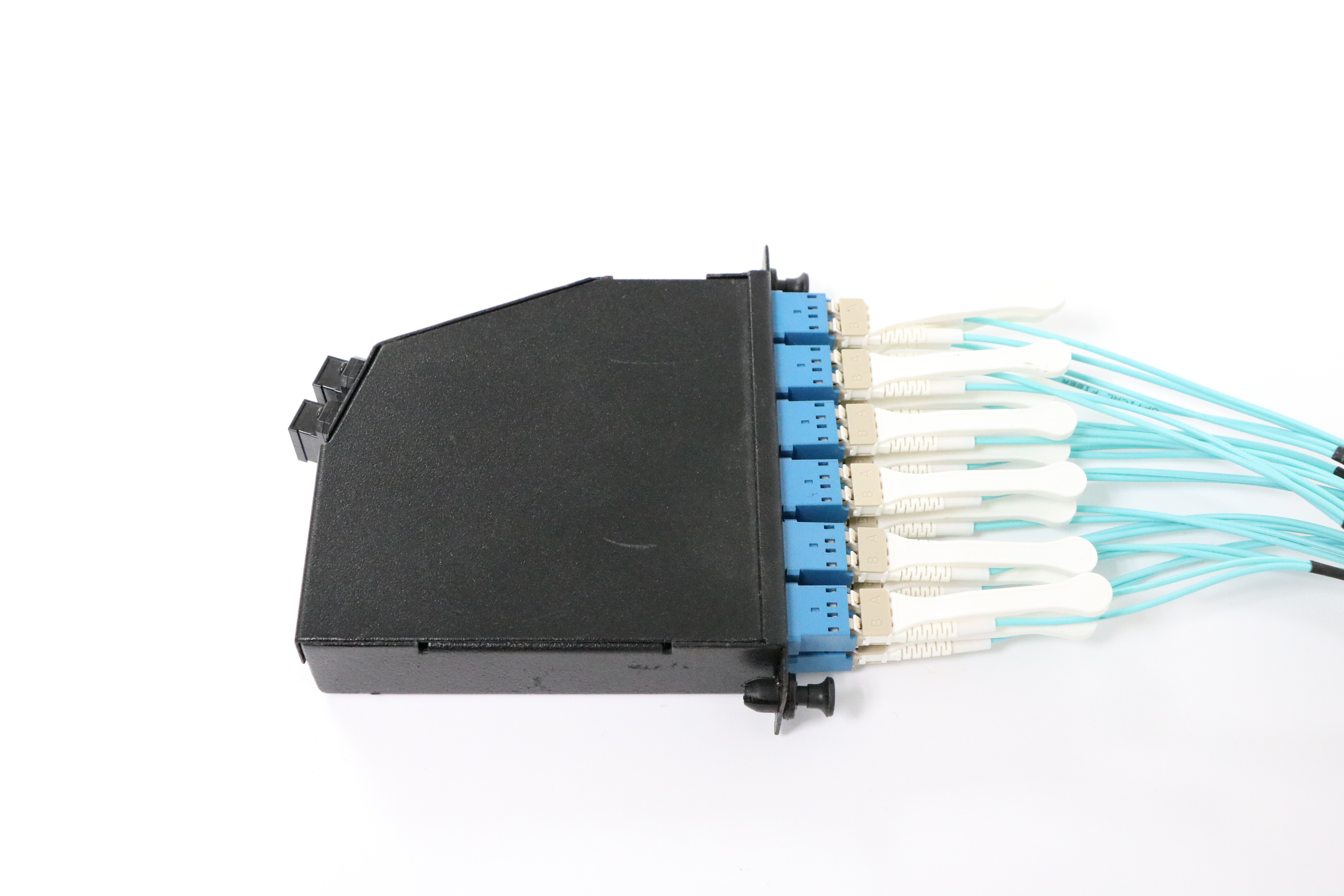

 MPO Cassette Module with SC Simplex Fiber Optic Adapter


Description:


MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.


Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.


Features:



Simple and Versatile panel with swell clip lock cover

Suitable for any office or corporate installation

Full assembly (loaded) or empty panel optional

Splice chip and fiber spool versions optional



Application:


 Local area networks (LAN)
Wide area networks (WAN)
CATV, metro Test equipment
Telecommunication networks
Premise installations


Specification:

Fiber Connector

Connector A
Connector Type 8, 12 or 24 -Fiber MPO /MTP
Ferrule of end-face UPC, APC
Housing Color MM (Beige/Aqua), SM (Yellow/Green)
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(500 Matings) < 0.2dB
Connector B
Connector Type LC/SC
Ferrule of end-face UPC, APC
Housing Color Blue, Beige, Aqua
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(1000 Matings) < 0.2dB


Fiber Cable

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24 cores
Outer diameter 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength 500N
Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C
