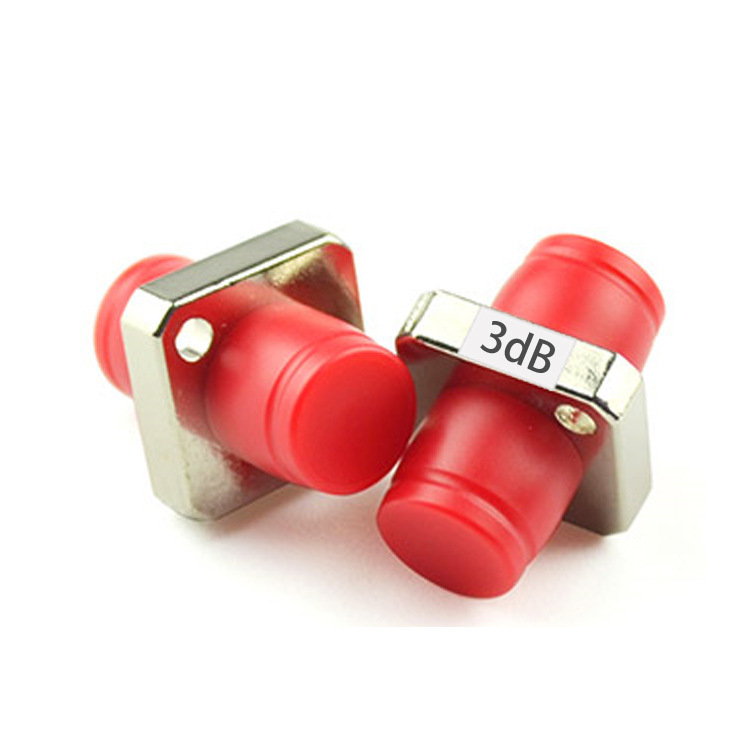

Optic fiber receiver (also known as the flange, coupling) is a fiber optic connector for connection components, the product variety, including FC, SC, ST, LC, MTRJ, MPO etc. , as well as carry out the transfer of goods between each other.
Application:
Optical fiber transmission network
Cable network
Fiber LAN Network
Fiber optic patch panels, rack and wall mount fiber distribution
Feature:
Excellent Repeatability
Excellent Interchangeability
Superior performance, stable and reliable.
Flexible and easy to use
Repeatability, interchangeability
Working temperature: -40 ℃ -80℃
Specification:
|
Size |
LC, SC, FC, SC-SC |
MTRJ |
E2000 |
||||||
|
type |
Single mode |
Double mode |
Single mode |
Double mode |
Single mode |
||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
|
|
Insertion Loss (dB) |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Interchangeability (dB) |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
|
Repeatability (dB) |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
|
Mechanical durability |
>1000 |
>1000 |
>1000 |
||||||
|
Working temperature( ℃) |
-40~75 |
-40~75 |
-40~75 |
||||||
|
Storage Temperature |
-45~85 |
-45~85 |
-45~85 |
||||||
Order Information:
LC/PC-ST/PC-SM-Duplex-Plastic
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, E2000, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal
