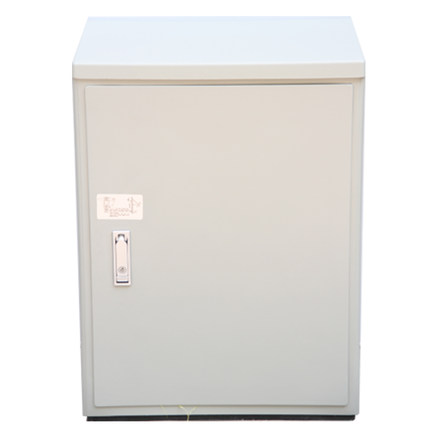

Box adopts high strength stainless steel plate, high strength, anti aging, corrosion resistance, and can resist accidental or vicious damage

Case all edges using a dedicated fillet forming die forming, surface treatment by drawing or electrostatic plastic spraying, beautiful appearance

Among the double-deck box filled with high-performance thermal insulation material, has good heat insulation effect, can effectively prevent the water vapor condensation in the cabinet

Using special seal door seal, waterproof door lock and the door is three point pin lock door, safe, reliable, good sealing

Use 12 core welding wiring integration module

Can be installed with FC, SC, fiber optic adapter

Have reliable cable fixed and grounding protection device

Suitable for single core and the into the end of the ribbon cable

SMC

Box adopt high strength SMC international aviation materials (glass fiber reinforced unsaturated polyester plastics) through high heat moulding, long service life, anti aging, anti radiation;Surface without any protection, have all-weather protective function

Enclosure thick, with good heat insulation effect, can effectively prevent the water vapor condensation in the cabinet

Using special seal door seal, waterproof door lock and the door is three point pin lock door, safe, reliable, good sealing

Use 12 core welding wiring integration module

Suitable for the installation of FC, SC, fiber optic adapter

Have reliable cable fixed and grounding protection device

Suitable for single core and the into the end of the ribbon cable

Applicable standards: YD/T 988-2007

indicators

Connector loss (insert, repeat) : 0.5 db or less

Return loss: PC or 40 db, UPC acuity 50 db, APC or 60 db

Fiber optic adapter plug 1000 variation acuities were 0.2 dB
