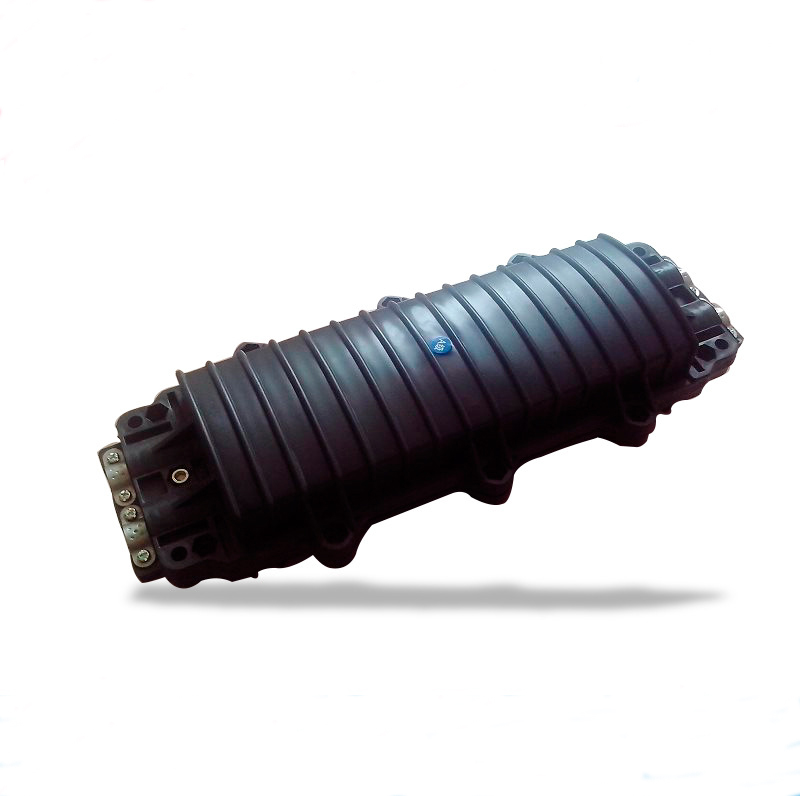

2 Input And 2 Output , In Line Outdoor Fiber Splice Enclosure With 24 Fiber Splice Tray
Information:
Details
 Description:



The optic fiber splice closures are widely apply for the connecting of optical cable.

Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables.

It provides space and protection for the fiber optic cable splicing and joint.

Fiber splice closure is used for aerial, strand-mount FTTH "tap" locations where drop cables are spliced to distribution cables.


Feature:

Suitable for ordinary fiber and ribbon fiber.
Fully kitted with all parts for convenient operation.
Overlap structure in splicing tray for easy installation.
Fiber-bending radium guaranteed more than 40mm.
Easy to install and re-entry with a common can wrench.
Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
Stand up to severe condition of moisture,vibration and extreme temperatures.

Application:


It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables.

It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network.

Suitable for single core fiber optic cable and ribbon fiber optic cable.


Main Technical Indexes:


Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation
Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.

Specification:



Type FOSC-H001 FOSC-H002 FOSC-H003 FOSC-H004 FOSC-H005 FOSC-H006
Size(mm) 435*190*85 435*190*120 435*190*120 435*190*80 435*190*170 420*150*110
Cable diameter(mm) Φ 10 – Φ 17 Φ 10 – Φ 22 Φ 10 – Φ 22 Φ 10 – Φ 17 Φ 10 – Φ 22 Φ 10 – Φ 23
Max capacity(core) 96 168 192 96 288 96
Cable port 2 in, 2 out 4 in, 4 out 3 in, 3 out
Sealing structure Sticky cincture
Weight(kg) 2.6 2.8 2.6 2.3 4.7 2
