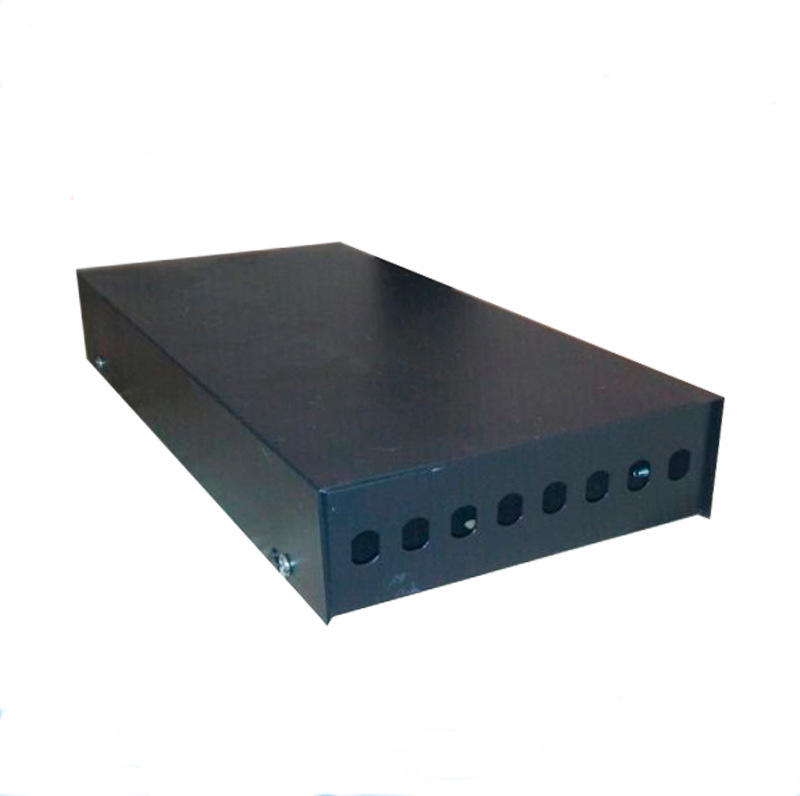

Fiber Patch Panel

Description:

19 inches;1RU ,2RU, 4RU standard installation.

Several adapters can be installed: FC,SC,ST, LC

Suitable for ribbon and bunchy fiber cable.

Several capacity: 12, 24, 36, 48, 72, 96, splices.

Feature:

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.

The box has a pothook, which is convenient to install and dismantle.

The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray.

Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.

The indoor type is of excellent seal performance, which could prevent water from entering effectively.

The box is of unique structure, reasonable layout, and has adequate room for operation.

Main technical Parameter:

Environmental temperature: -25 - 65°C.

Relative humidity:  ≤85%((when the temperature is below 30°C)).
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

The fiber optic splice tray could be piled one upon another, flexible to turn.

The box are Rack Mounted, which is convenient to install and dismantle.
