Optical fiber wiring ark Optical Fiber Distribution Cabinet ODF
Information:
Details

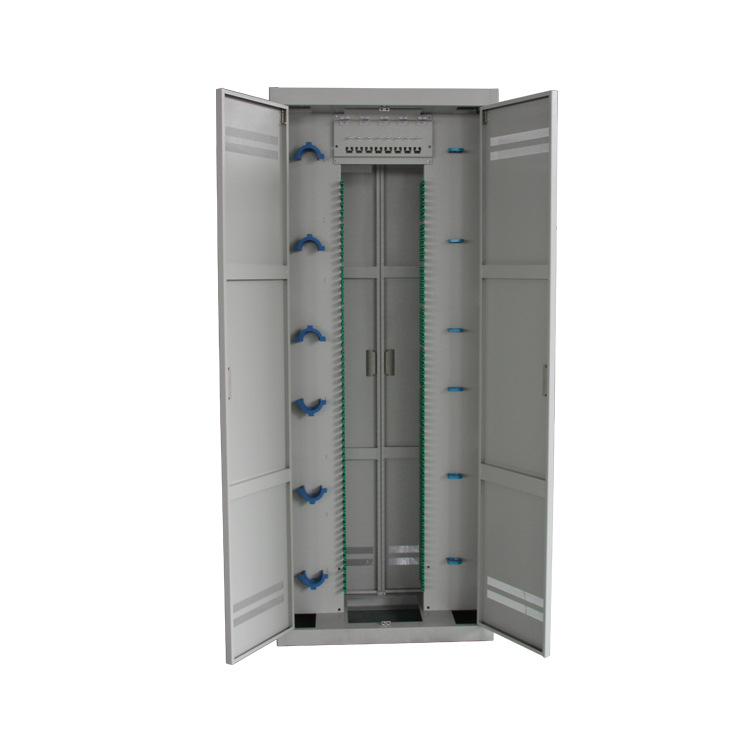

Optical fiber wiring ark  Optical Fiber Distribution Cabinet

ODF




Product name: optical fiber wiring cabinet



Product specification: height 1.8 m, 2 m, 2.2 m (into) the prices are different (different size)



Material: high quality manufacture



Color: grey



Main technical parameters are in pieces



* working temperature: - 40 ℃ ~ + 85 ℃



* relative humidity: 85% or less (+ 30 ℃)



* the atmospheric pressure: 70 ~ 106 kpa early optical transmission systems because of the fiber optical loss is bigger, its machining precision connector is not enough, so, usually by cable directly to the terminal.Specific approach is to line side of the optical fiber and optical transceiver to the tail of the fiber in the terminal box for fixed connection.



Product features:



* C type optical fiber distribution frame suitable for melting separate unit structure, frame removable, easy and frame, can be used in large capacity optical fiber communication engineering.

* frame appearance, compact structure, large capacity, high density, suitable for the ribbon cable and common optical cable.

* reasonable winding linear structure, make the line is very clear and concise, very convenient.

Door plank convertible disassembly, * unit cell and the entire panel down positive can be 90 degrees, convenient for the installation and maintenance of the fiber.

* 24, 48, 72 core, four kinds of specifications of the wiring unit 96 core for the user to choose from.

* installed adapters inclination to 40 ° C, avoid direct arc starting, at the same time can guarantee fiber curvature radius should not less than 40 mm.

* frame with safe and reliable grounding protection device.



Technical features:



* frame of high pressure protection between the rack and insulation: insulation resistance Ω > 20000 m / 500 v (DC)

* chassis protective grounding between the chassis and high-pressure compression: > 15000 v (DC) for 1 minute without breakdown and flashover phenomenon.





Application range in pieces



Applies to outside cable and connection of optical communication equipment, is a fixed with fiber optic cable, fiber buffer, welding, grounding protection and the distribution of the optical fiber, composition, scheduling, and other functions of the modern communication equipment.
