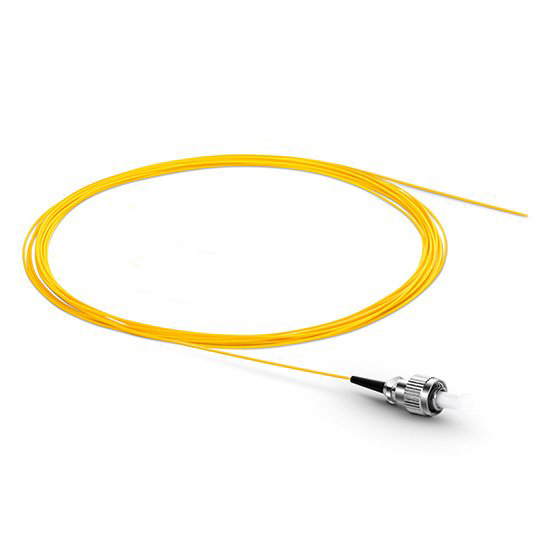

Simplex FC/UPC 9/125 Single-mode Fiber Optic Pigtail
Information:
Details


Specifications

Fiber Optic Patch Cord
RoHS
Low Insertion Loss & High Return Loss
Optional Connector & Cable Length

Fiber Optic Patch Cord Feature:

  •  Telcordia’s GR-326-Core, IEC Standard
  •  Green Production, RoHS Standard
  •  Excellent Polished and 100% tested.
  •  High stability various environments
  • Customize order available

Fiber Optic Patch Cord Technical Standard:

  • Insertion Loss:  PC≤0.2dB, UPC≤0.2dB, APC≤0.3dB ; Typical0.1dB;
  • Return Loss:  SM   PC≥50dB, UPC≥55dB, APC≥65dB;   MM  PC≥35dB, UPC≥35dB
  • Interchangeability: ≤0.2dB
  • Salt Spray : ≤0.2dB
  • Repeatability : (1000 times)  ≤0.1dB
  • Vibration: (550Hz  1.5mm) ≤0.1dB
  • High Temperature : ( +85 sustain 100 hours) ≤0.2dB
  • Low Temperature : (-40 sustain 100 hours) ≤0.2dB
  • Temperature Circularly: (-40+85 sustain 100 hours)  ≤0.2dB
  • Humidity : (+25+65 93 R.H.100 hours)   ≤0.2db
  • Apex Offset: 0μm≤≤50μm
  • Radius of Curvature: 7mm≤≤25mm
  • Cable TypeSimplex, Duplex, Fan-Out;
  • Connector Type: LC,SC,FC,ST, E2000, MU, MPO, MTRJ, D4,DIN, SMA, FDDI, ESCON etc.
  • Fiber Mode: SM (single mode) G652D, G655, G657, MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)
